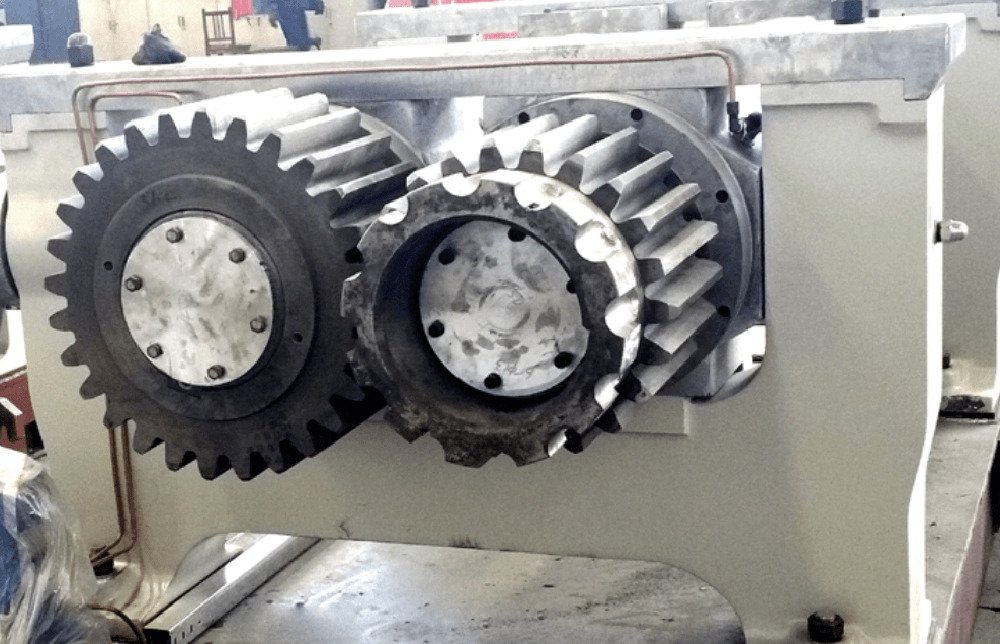

Features high-strength, low-carbon alloy steel quenched gears with precision CNC grinding, achieving ≥98% transmission efficiency, smooth/low-noise operation (≤65dB)
Robust performance for high-load applications like rubber machinery. Combines durability with energy-saving reliability.

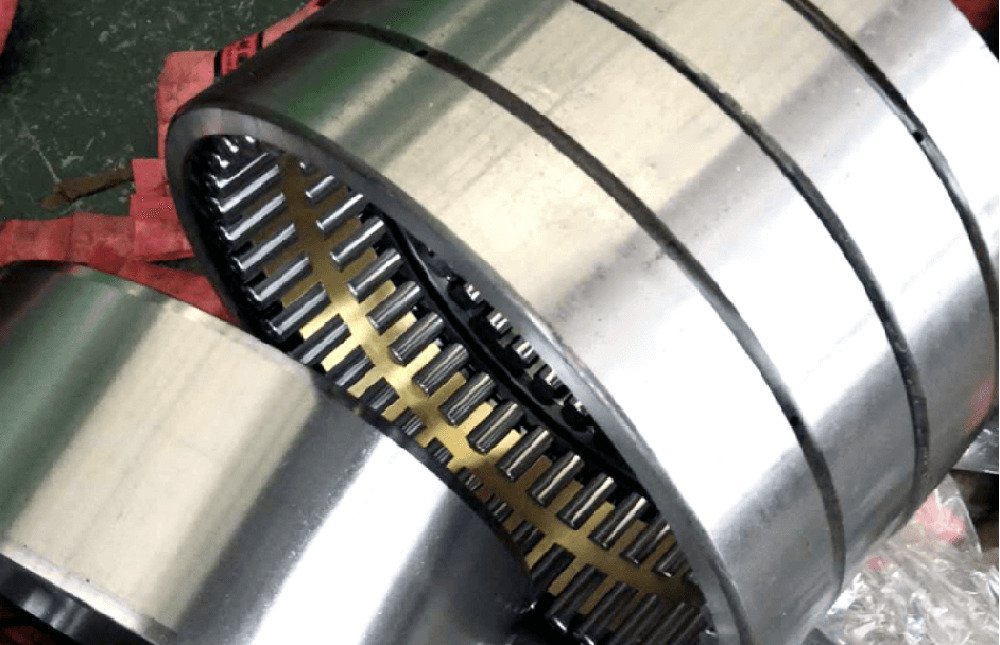

The end of rollers are supported by the roller ball bearing bush.
It has the advantages of running smooth ,energy saving(save 5-8%power), low noise and long life.
The seal of bearing both side adopt no skeleton oil seal, the material of oilseal is FKM. Traditional nylon bush is not wear resistant and hard resistant , so itseasy to be damaged.
All our machine adopts the roller ball bearing .Kindly note our machine adopts totally 8 roller ball bearing , not 4 bearing.
Only top-grade materials are used in our rubber mixing mill machinery, we never cut corners.
Our strict quality control processes guarantee not only a longer product lifespan but also enhanced stability and reliability in performance.

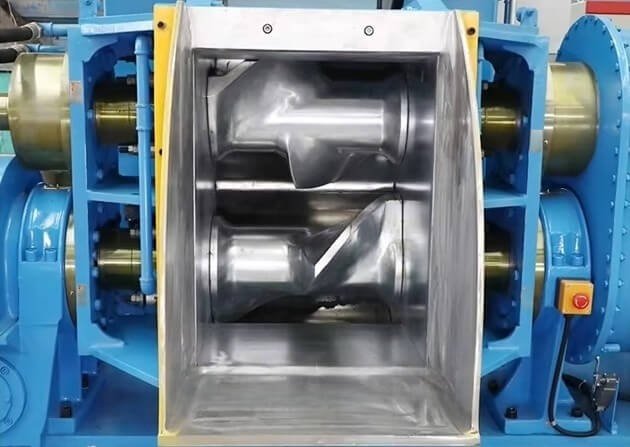

The rotor is two-side shear type,the working edge peaks welded with hard alloy,and the whole working part of the rotor body is plated with hard chromium.
The internal design of the forced cooling or heating channel facilitates temperature control of the rotor.

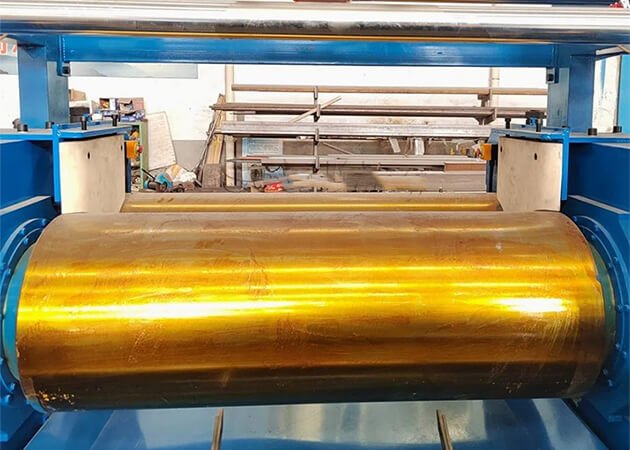

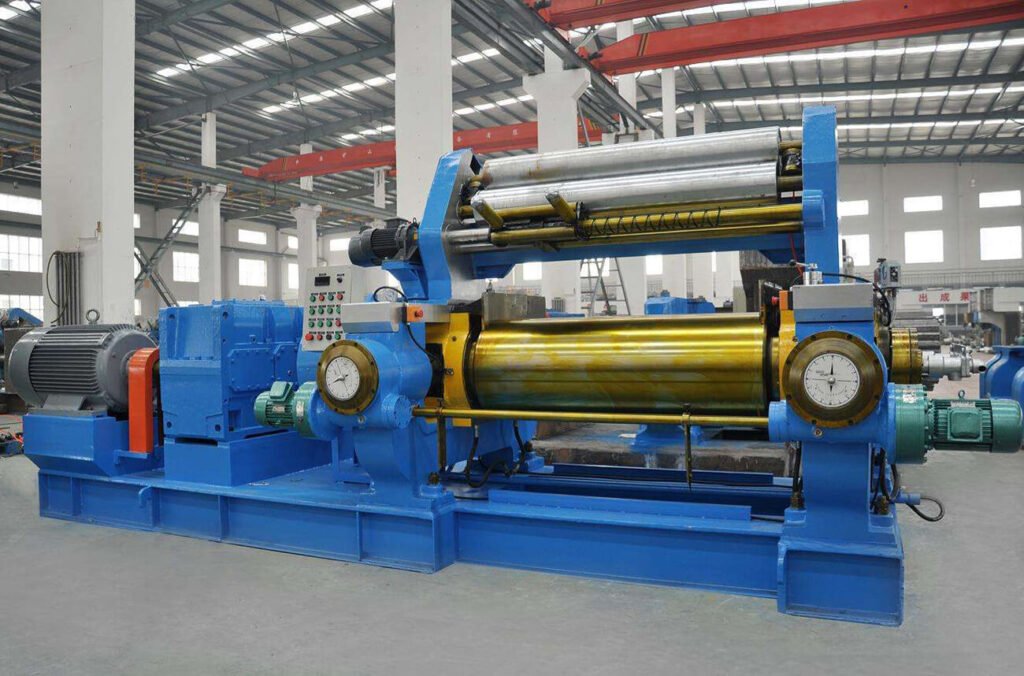

Our two-roll rubber mixing mill machine features high-quality rolls.
The rolls are made from vanadium titanium metal alloy chilled cast iron, ensuring a hard and wear-resistant surface. The internal cavity is engineered to maintain even temperature distribution on the roll surface.
Our expertise in manufacturing Rubber Mixing Mills is backed by decades of refined engineering and industry-leading R&D, ensuring mature, reliable technology.
Below are the performance of our rubber mixing mill machines, rigorously tested under ISO-certified manufacturing processes to guarantee precision, durability, and seamless integration into demanding production environments.
| Parameter/model | X(S)N-3 | X(S)N-10×32 | X(S)N-20×32 | X(S)N-35×32 | X(S)N-55×32 | X(S)N-75×32 | X(S)N-95×32 | X(S)N-110×30 | X(S)N-150×30 | X(S)N-200×30 | |
| Total volume | 8 | 25 | 45 | 80 | 125 | 175 | 215 | 250 | 325 | 440 | |
| Working volume | 3 | 10 | 20 | 35 | 55 | 75 | 95 | 110 | 150 | 200 | |
| Motor power | 7.5 | 18.5 | 37 | 55 | 75 | 110 | 132 | 185 | 220 | 280 | |
| Tilting motor power | 0.55 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 11 | 11 | |
| Tilting angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 130 | 140 | 140 | 140 | |
| Rotor speed (r/min) | 32/24.5 | 32/25 | 32/26.5 | 32/24.5 | 32/26 | 32/26 | 32/26 | 30/24.5 | 30/24.5 | 30/24.5 | |
| Pressure of compressed air | 0.7-0.9 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Capacity of compressed air (m/min) | ≥0.3 | ≥0.5 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.3 | ≥1.5 | ≥1.6 | ≥2.0 | ≥2.0 | |
| Pressure of cooling water for rubber (MPa) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Pressure of steam for plastic (MPa) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | |
| Size (mm) | Length | 1670 | 2380 | 2355 | 3200 | 3360 | 3760 | 3860 | 4075 | 4200 | 4520 |
| Width | 834 | 1353 | 1750 | 1900 | 1950 | 2280 | 2320 | 2712 | 3300 | 3400 | |
| Height | 1850 | 2113 | 2435 | 2950 | 3050 | 3115 | 3320 | 3580 | 3900 | 4215 | |
| Weight (kg) | 1038 | 3000 | 4437 | 6500 | 7850 | 10230 | 11800 | 14200 | 19500 | 22500 | |
We are a professional manufacturer and exporter for rubber machine.
